DIN 605 Flat Countersunk Square Neck Bolts • Steel (3.6, 4.6)

Size

Material Type

Coating

Description

DIN 605 Flat Countersunk Square Neck Bolts • Steel (3.6, 4.6) Material: Steel (3.6, 4.6) Finishing: Electrolytic Plating (Zn, ZnNi), Hot Dip Galvanized (HDG), Zinc Flake Coating (flZnyc, flZnnc) Sales Models: Wholesale Min. Order: 1000 pcs

d	M 6	M 8	M 10
P (pitch)	1	1,25	1,5
dk (max)	16,55	20,65	24,65
f (max)	7,45	9,45	11,55
v (max)	6,48	8,58	10,58
b (l ≤ 125)	18	22	26
b (125 < l ≤ 200)	24	28	32
b (l > 200)	_	41	45
l	30-60	30-80	40-100

Similar Products

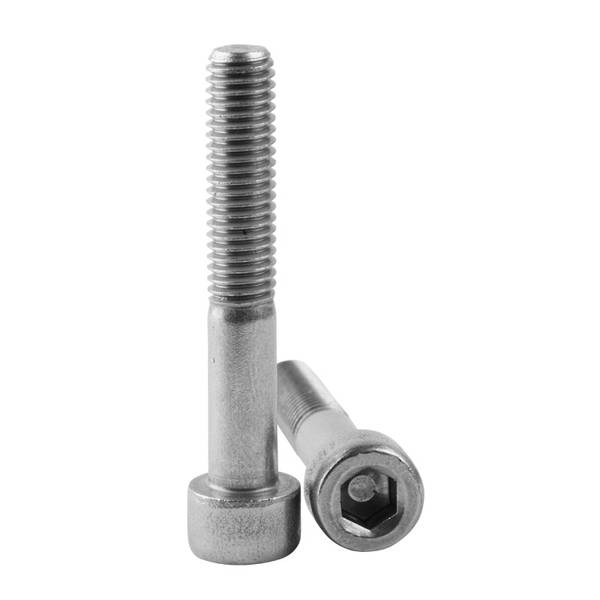

DIN 912 Hexagon Socket Head Cap Bolt • Steel (8.8, 10.9, 12.9) • Stainless Steel

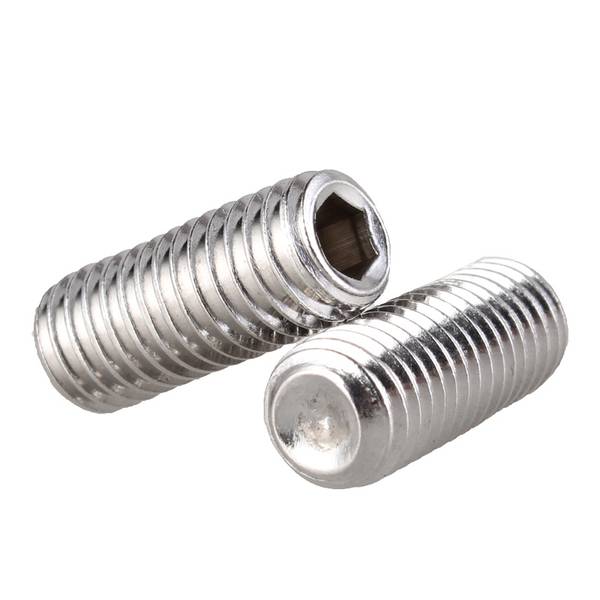

DIN 916 Hexagon Socket • Steel (45H)

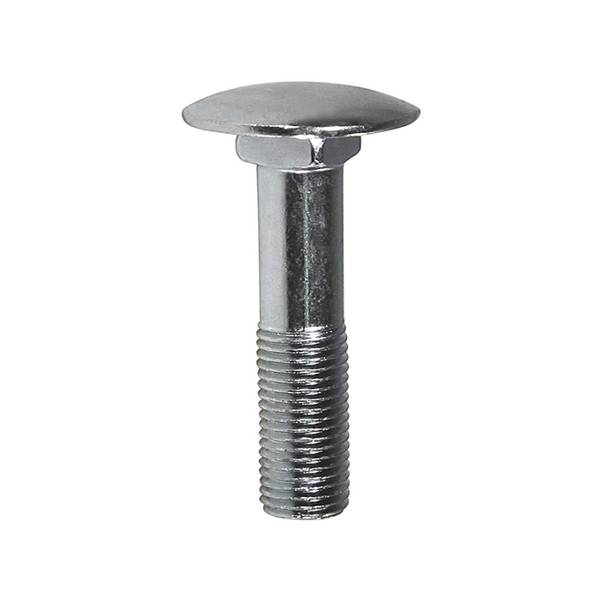

DIN 603 Round Head Square Neck Bolts • Stainless Steel • Brass • Steel (8.8)
