DIN 431Pipe Nut • Stainless Steel • Brass • Uncoated • Types of Hex Nuts

Size

Material Type

Coating

Description

DIN 431Pipe Nut • Stainless Steel • Brass • Uncoated • Types of Hex Nuts Material: Stainless Steel, Steel (14H), Brass Finishing: Electrolytic Plating (Zn, ZnNi) Sales Models: Wholesale Min. Order: 1000 pcs

d	G 1/8	G 1/4	G 3/8	G 1/2	G 5/8	G 3/4	G 7/8	G 1	G 1 1/8	G 1 1/4
m (min)	6	6	7	8	8	9	9	10	10	11
s	19	22	27	34	34	36	41	46	50	55
e (min)	19,85	22,78	29,56	37,29	37,29	39,55	45,2	50,85	55,37	60,79

d	G 1 1/2	G 1 3/4	G 2	G 2 1/4	G 2 1/2	G 3	G 4	G 5	G 6
m (min)	12	13	13	16	16	19	22	22	25
s	60	70	75	85	95	105	135	165	190
e (min)	66,44	76,93	82,6	93,56	104,86	116,16	149,72	183,06	209,5

Similar Products

DIN 439-2 Hexagon Thin Nuts • Steel • Brass • Uncoated • Chamfered • Types of Hex Nuts

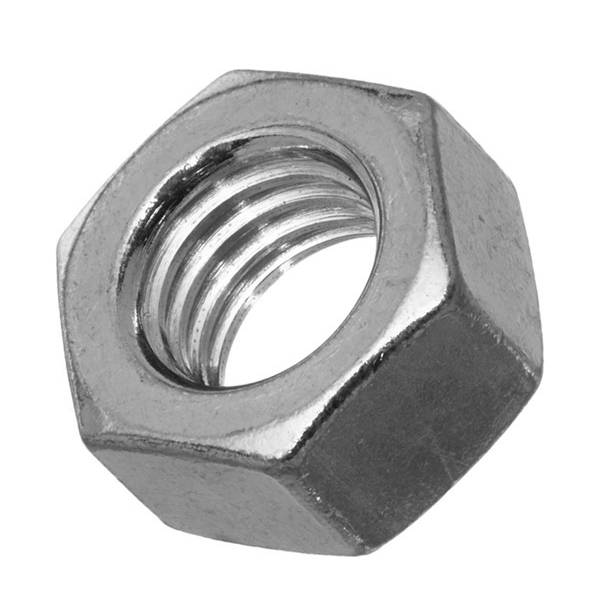

DIN 555 Hexagon Nut • Steel • Plastic • Uncoated • Types of Hex Nuts
