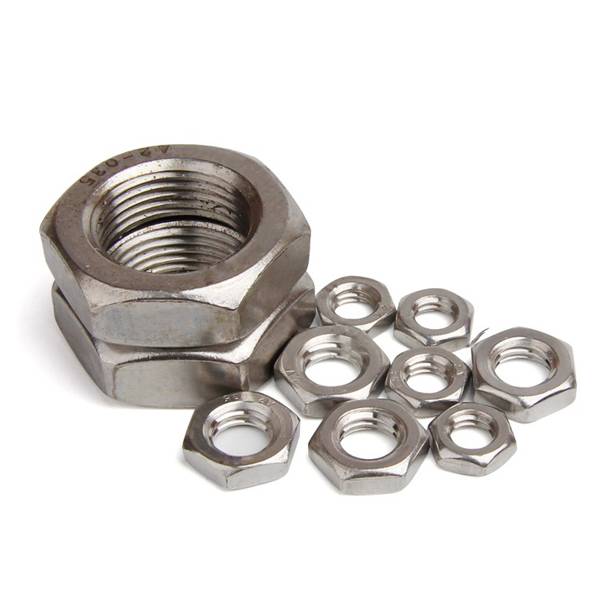

DIN 439-2 Hexagon Thin Nuts • Steel • Brass • Uncoated • Chamfered • Types of Hex Nuts
Size
Material Type
Coating
Description
DIN 439-2 Hexagon Thin Nuts • Steel • Brass • Uncoated • Chamfered • Types of Hex Nuts Material: Steel (4.6, 8.8), Stainless Steel, Brass Finishing: Electrolytic Plating (Zn, ZnNi), Hot Dip Galvanized (HDG), Zinc-Flake Coated (flZnyc, flZnnc) Sales Models: Wholesale Min. Order: 1000 pcs
/fit-in/400x400/fasteners/DIN-439-2-Hexagon-Thin-Nuts-Chamfered-2-fHYN.jpg)

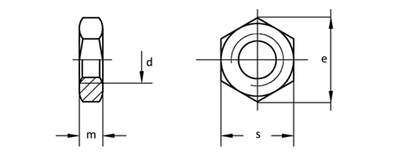

| d | M 1,6 | M 1,8 | M 2 | M 2,5 | M 3 | M 3,5 | M 4 | M 5 | M 6 |
| P (pitch) | 0,35 | 0,35 | 0,4 | 0,45 | 0,5 | 0,6 | 0,7 | 0,8 | 1 |
| e (min) | 3,48 | 3,82 | 4,32 | 5,45 | 6,01 | 6,58 | 7,66 | 8,79 | 11,05 |
| m | 1 | 1,1 | 1,2 | 1,6 | 1,8 | 2 | 2,2 | 2,7 | 3,2 |
| s | 3,2 | 3,5 | 4 | 5 | 5,5 | 6 | 7 | 8 | 10 |
| d | M 8 | M 10 | M 12 | M 14 | M 16 | M 18 | M 20 | M 22 | M 24 |
| P (pitch) | 1,25 (1) | 1,5 (1) (1,25) | 1,75 (1,5) (1,25) | 2 (1,5) | 2 (1,5) | 2,5 (1,5) (2) | 2,5 (2) (1,5) | 2,5 (1,5) (2) | 3 (2) (1,5) |
| e (min) | 14,38 | 18,9 | 21,1 | 24,49 | 26,75 | 29,56 | 32,95 | 35,03 | 39,55 |
| m | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| s | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 |
| d | M 27 | M 30 | M 33 | M 36 | M 39 | M 42 | M 45 | M 48 | M 52 |
| P (pitch) | 3 (2) (1,5) | 3,5 (2) (1,5) | 3,5 (2) (1,5) | 4 (3) (2) (1,5) | 4 (3) (2) (1,5) | 4,5 (3) (2) (1,5) | 4,5 (3) (2) (1,5) | 5 (3) (2) (1,5) | 5 (3) (2) (1,5) |
| e (min) | 45,2 | 50,85 | 55,37 | 60,79 | 66,44 | 71,3 | 76,95 | 82,6 | 88,25 |
| m | 13,5 | 15 | 16,5 | 18 | 19,5 | 21 | 22,5 | 24 | 26 |
| s | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
