DIN 934 Hexagon Nut • Aluminum • Stainless Steel • Brass • Plastic • Uncoated • Types of Hex Nuts

Size

Material Type

Coating

Description

DIN 934 Hexagon Nut • Aluminum • Stainless Steel • Brass • Plastic • Uncoated • Types of Hex Nuts Material: Steel (6, 8, 10, 12), Stainless Steel, Brass, Plastic , Aluminum Finishing: Electrolytic Plating (Zn, ZnNi), Hot Dip Galvanized (HDG), Zinc-Flake Coated (flZnyc, flZnnc) Sales Models: Wholesale Min. Order: 1000 pcs

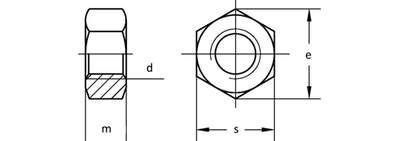

d	M 1	M 1,2	M 1,4	M 1,6	M 2	M 2,5	M 3	M 3,5
P (pitch)	0,25	0,25	0,3	0,35	0,4	0,45	0,5	0,6
e (min)	2,71	3,28	3,28	3,41	4,32	5,45	6,01	6,58
m	0,8	1	1,2	1,3	1,6	2	2,4	2,8
s	2,5	3	3	3,2	4	5	5,5	6

d	M 4	M 5	M 6	M 7	M 8	M 10	M 12	M 14	M 16
P (pitch)	0,7	0,8	1	1	1,25 (1)	1,5 (1) (1,25)	1,75 (1,5) (1,25)	2 (1,5)	2 (1,5)
e (min)	7,66	8,79	11,05	12,12	14,38	18,9	21,1	24,49	26,75
m	3,2	4	5	5,5	6,5	8	10	11	13
s	7	8	10	11	13	17	19	22	24
