DIN 935 Hexagon Slotted and Castle Nut • Stainless Steel • Uncoated • Types of Hex Nuts
Size
Material Type
Coating
Description
DIN 935 Hexagon Slotted and Castle Nut • Stainless Steel • Uncoated • Types of Hex Nuts Material: Steel (6, 8, 10, 12), Stainless Steel Finishing: Electrolytic Plating (Zn, ZnNi), Hot Dip Galvanized (HDG), Zinc-Flake Coated (flZnyc, flZnnc) Sales Models: Wholesale Min. Order: 1000 pcs
/fit-in/400x400/fasteners/DIN-935-Hexagon-Slotted-and-Castle-Nut-3-15SS.jpg)

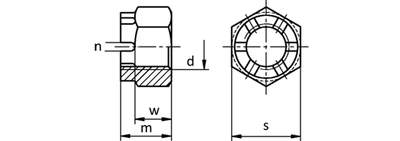

| d | M 12 | M 14 | M 16 | M 18 | M 20 | M 22 | M 24 | M 27 | M 30 |
| P (pitch) | 1,75 (1,25) (1,5) | 2 (1,5) | 2 (1,5) | 2,5 (1,5) (2) | 2,5 (1,5) (2) | 2,5 (1,5) (2) | 3 (2) | 3 (2) | 3,5 (2) |
| n (min) | 3,5 | 3,5 | 4,5 | 4,5 | 4,5 | 5,5 | 5,5 | 5,5 | 7 |
| w (max) | 10 | 11 | 13 | 15 | 16 | 18 | 19 | 22 | 24 |
| m | 15 | 16 | 19 | 21 | 22 | 26 | 27 | 30 | 33 |
| S | 18 | 21 | 24 | 27 | 30 | 32 | 36 | 41 | 46 |
| d | M 33 | M 36 | M 39 | M 42 | M 45 | M 48 | M 52 | M 56 |
| P (pitch) | 3,5 (2) | 4 (3) | 4 (3) | 4,5 (3) | 4,5 (3) | 5 (3) | 5 (3) | 5,5 (4) |
| n (min) | 7 | 7 | 7 | 9 | 9 | 9 | 9 | 9 |
| w (max) | 26 | 29 | 31 | 34 | 36 | 38 | 42 | 45 |
| m | 35 | 38 | 40 | 46 | 48 | 50 | 54 | 57 |
| s | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 |
