DIN 936 Hexagon Thin Nut • Stainless Steel • Brass • Uncoated • Types of Hex Nuts

Size

Material Type

Coating

Description

DIN 936 Hexagon Thin Nut • Stainless Steel • Brass • Uncoated • Types of Hex Nuts Material: Steel (17H, 22H), Stainless Steel, Brass Finishing: Electrolytic Plating (Zn, ZnNi), Hot Dip Galvanized (HDG), Zinc-Flake Coated (flZnyc, flZnnc) Sales Models: Wholesale Min. Order: 1000 pcs

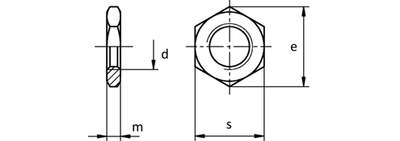

d	M 8	M 10	M 12	M 14	M 16	M 18	M 20	M 22	M 24
P (pitch)	1,25 (1)	1,5 (1) (1,25)	1,75 (1,25) (1,5)	2 (1,5)	2 (1,5)	2,5 (1,5) (2)	2,5 (1,5) (2)	2,5 (1,5) (2)	3 (1,5) (2)
m	5	6	7	8	8	9	9	10	10
s	13	17	19	22	24	27	30	32	36
e (min)	14,38	18,9	21,1	24,49	26,75	29,56	32,95	35,03	39,55

d	M 27	M 30	M 33	M 36	M 39	M 42	M 45	M 48	M 52
P (pitch)	3 (1,5) (2)	3,5 (1,5) (2)	3,5 (1,5) (2)	4 (1,5) (2) (3)	4 (1,5) (2) (3)	4,5 (1,5) (2) (3)	4,5 (1,5) (2) (3)	5 (1,5) (2) (3)	5 (1,5) (2) (3)
m	12	12	14	14	16	16	18	18	20
s	41	46	50	55	60	65	70	75	80
e (min)	45,2	50,85	55,37	60,79	66,44	71,3	76,95	82,6	88,25
