DIN 937 Hexagon Slotted and Castle Nut • Uncoated • Types of Hex Nuts
Size
Coating
Description
DIN 937 Hexagon Slotted and Castle Nut • Uncoated • Types of Hex Nuts Material: Steel (17H) Finishing: Electrolytic Plating (Zn, ZnNi) Sales Models: Wholesale Min. Order: 1000 pcs
/fit-in/400x400/fasteners/DIN-937-Hexagon-Thin-Slotted-and-Castle-Nut-2-RV3V.jpg)

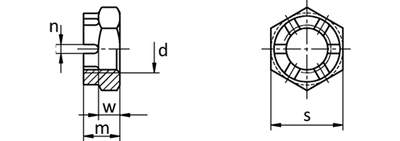

| d | M 6 | M 7 | M 8 | M 10 | M 12 | M 14 | M 16 |
| P (pitch) | 1 | 1 | 1,25 (1) | 1,5 (1,25) (1) | 1,75 (1,25) (1,5) | 2 (1,5) | 2 (1,5) |
| n (min) | 2 | 2 | 2,5 | 2,8 | 3,5 | 3,5 | 4,5 |
| w (max) | 3,5 | 4 | 4,5 | 5 | 6 | 7 | 7 |
| m (max) | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| S | 10 | 11 | 13 | 17 | 19 | 22 | 24 |
| d | M 18 | M 20 | M 22 | M 24 | M 27 | M 30 | M 33 |
| P (pitch) | 2,5 (1,5) (2) | 2,5 (1,5) (2) | 2,5 (1,5) (2) | 3 (2) | 3 (2) | 3,5 (2) | 3,5 (2) |
| n (min) | 4,5 | 4,5 | 5,5 | 5,5 | 5,5 | 7 | 7 |
| w (max) | 8 | 8 | 9 | 9 | 11 | 11 | 13 |
| m (max) | 13 | 13 | 15 | 15 | 17 | 18 | 20 |
| S | 27 | 30 | 32 | 36 | 41 | 46 | 50 |
