DIN 979 Hexagon Thin Slotted and Castle Nut • Uncoated • Types of Hex Nuts

Size

Material Type

Coating

Description

DIN 979 Hexagon Thin Slotted and Castle Nut • Uncoated • Types of Hex Nuts Material: Steel (6, 8, 10, 12) Finishing: Electrolytic Plating (Zn, ZnNi) Sales Models: Wholesale Min. Order: 1000 pcs

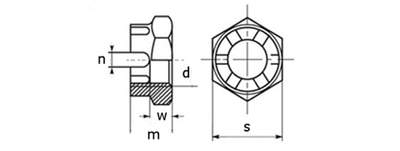

d	M 6	M 7	M 8	M 10	M 12	M 14	M 16	M 18	M 20	M 22
P (pitch)	1	1	1,25 (1)	1,5 (1) (1,25)	1,75 (1,25) (1,5)	2 (1,5)	2 (1,5)	2,5 (1,5) (2)	2,5 (1,5) (2)	2,5 (1,5) (2)
m	5	5,5	6,5	8	10	11	13	15	16	18
w (max)	2,5	3	3,5	4	5	6	7	9	10	10
n (min)	2	2	2,5	2,8	3,5	3,5	4,5	4,5	4,5	5,5
s	10	11	13	16	18	21	24	27	30	32

d	M 24	M 27	M 30	M 33	M 36	M 39	M 42	M 45	M 48	M 52
P (pitch)	3	3	3,5	3,5	4	4	4,5	4,5	5	5
m	19	22	24	26	29	31	33	34,5	36	38
w (max)	11	14	15	17	20	22	22	22,5	24	26
n (min)	5,5	5,5	7	7	7	7	9	9	9	9
s	36	41	46	50	55	60	65	70	75	80
